IEC60065 Compliant Dielectric Strength Test Equipment with 12KV Max Strength and 5mm Metal Pin Diameter

Name: IEC60065 Compliant Dielectric Strength Test Equipment with 12KV Max Strength and 5mm Metal Pin Diameter
Brand: kingpo
Price: 1 USD

China IEC60065 Compliant Dielectric Strength Test Equipment with 12KV Max Strength and 5mm Metal Pin Diameter wholesale

Standard : IEC60065 figure 6 and UL1310 clause 40.2

Metal pin : φ5 mm，mass of 100 g & φ6.35 mm mass of 50 g

matel club weight : 100±2g

matal pole diameter : 5±0.1mm

max measure range : 20mm

max strength : <12KV

Brand Name : kingpo

Model Number : KP-CK10

Certification : iso9001 ce

Place of Origin : china

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Packaging Details : safety carton pack or plywood box

Contact Now

IEC60238-Figure 36 Dielectric Strength Test Equipment

Product Overview

IEC60065 Dielectric Strength Test Instrument for comprehensive electrical safety testing applications.

Application & Standards

This dielectric strength test equipment is engineered in compliance with IEC60065 and UL1310 clause 40.2 standards. The device features precision metal pins with specific dimensions and weights for accurate testing of thin-layer insulation material electric strength.

Upper metal pin: 5mm diameter, 100g mass
Secondary pin: 6.35mm diameter, 50g mass
Complete lower metal pin and frame holder assembly
Constructed from 304 plate material for durability
Surface brushed and polished for enhanced insulation properties
Minimum edge distance >35mm from bottom bracket
Designed for 2000 meters altitude with 12KV strength test capability
Also complies with IEC60238 Figure 36 standards for solid insulation testing

Certification

Calibration certificate available - calibration certificate.pdf

Technical Parameters

Parameter	Technical Specification
Metal Pole Diameter	5mm for 100g pin, 6.8mm for 50g pin
Metal Pin Weight	50g and 100g, each 1 piece
Metal Pin Diameter	5mm for 100g pin, 6.8mm for 50g pin
Compliance Standards	IEC60065, GB8898, UL1310

Product Images

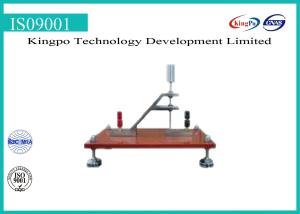

IEC60065 Compliant Dielectric Strength Test Equipment with 12KV Max Strength and 5mm Metal Pin Diameter
